MIXTY
MIXTY
The ladies' Mixty bike is a beautiful,
It has all the features you need to ride every day with speed and comfort.
The bike is full of great parts that will ensure smooth and efficient functioning.
And it and looks unlike anything else on the market.

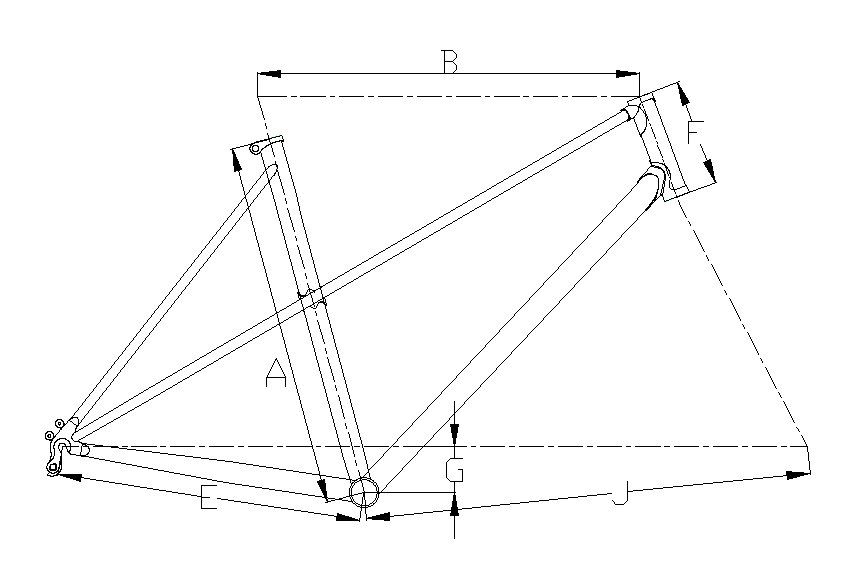

Frame Geometry


Seat Tube
(C-T)

Top tube, Effective
(C-C)

Seat Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front cenetr
Size A B D E F G J
45CM 450 485 75 400 125 60 567
48CM 480 500 75 400 140 60 584
50CM 500 520 75 400 155 60 605

Bike BOM
Frame Tange Champion No 2. Lugged
Fork Tange T-2T11, Lugged
Headset Tange Seiki
Stem Tange T-5330, BAR BORE ID26 * -17DEG
Headlebar Tange AL DROP BAR 26*W380mm, Sil
Brakes Promax RC 483
Brake levers SHIMANO Claris
Front derailleur SHIMANO Claris
Rear deraileur SHIMANO Claris
Shifters SHIMANO Claris
Crankset SHUM ALLOY SIL, L170mm * 50-34T
Cassette SHIMANO 11-32T 8-SPD
Wheels Tange THB 009 F+R Aero rims, Sil
Tires Kenda KWEST 26" * 1.25"
Seat post Tange T-3350 OD 27,2
Saddle DDK, WHITE
Remark:
* Figures based on non-specific 26" * 1.25"  tire, All specs subject to change
* Head tube 1", BSA BB Part, Road Brake
* Sold as Complete Bike & Frame Kit ( Includes Frame / Fork / Headset)
* Use Full Champion No.2 tubeset
